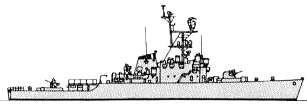

Berk 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Berk | D358 | Gölçuk NSY, Kocaeli, Izmir | 9.3.1967 | 25.6.1971 | 12.7.1972 | stricken 01/1999 | |
| Peyk | D359 | Gölçuk NSY, Kocaeli, Izmir | 18.1.1968 | 7.6.1972 | 24.7.1975 | stricken 11.2000 |
|
Displacement standard, t |
1450 |
|
Displacement full, t |
1950 |
|
Length, m |
95.2 |
|
Breadth, m |
11.8 |
|
Draught, m |
4.40 hull 5.50 over sonar |
|
No of shafts |
1 |
|
Machinery |
4 Fiat-Tosi Type 3-016-RSS diesels |
|
Power, h. p. |
24000 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil 220 |
|
Endurance, nm(kts) |
3600(22) |
|
Armament |
2 x 2 - 76/50 Mk 33, 2 x 3 - 324 Mk 332 TT, 2 x 24 Hedgehog Mk 11 ASWRL, 1 DCR, helicopter deck |
| Electronic equipment | Decca TM1226, SPS-10, SPS-40, 2x SPG-34 radars, SQS-11 sonar, WLR-1 ECM suite |
|
Complement |
175 |
Project history: These were the first major warships built in Turkey since before the First World War, and were based on the USN Claud Jones class frigate design. They had a slightly different hull, however, a more powerful armament,different machinery and one large funnel. There was a helicopter pad but no hangar.
Modernizations: None.
Naval service: No significant events.

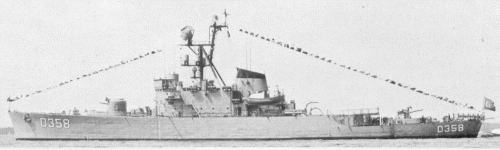

Berk 1977
