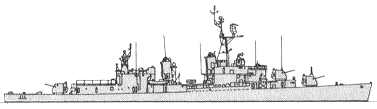

Zafer 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Zafer (ex-Hugh Purvis) | D356 | Federal, Kearny, USA | 23.5.1944 | 17.12.1944 | 1.3.1945 // 15.2.1972 | stricken 1993 |
|
Displacement standard, t |
2200 |
|
Displacement full, t |
3300 |
|
Length, m |
112.5 wl 114.8 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
4.39 hull 5.79 over sonar |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
33 |
|
Fuel, t |
oil 650 |
| Endurance, nm(kts) | 4300(11) |
|
Armament |
3 x 2 - 127/38 Mk 38, 2 x 3 - 324 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 DCR |
|
Electronic equipment |
SPS-29, SPS-10, nav., Mk 25 radars, SQS-29 sonar, WLR-1, ULQ-6 ECM suites, 2x RBOC decoy RL |
|
Complement |
275 |
Project history: Former USN Allen M. Sumner class destroyer, modified under FRAM-II programme, transferred to Turkey under MDAP.
Modernizations: 1977: + 2 x 2 - 40/60 Mk 1, 2 x 1 - 40/60 Mk 3
1979: - 2 x 1 - 40/60; + 1 x 2 - 35/90 GDM-A
Naval service: No significant events.

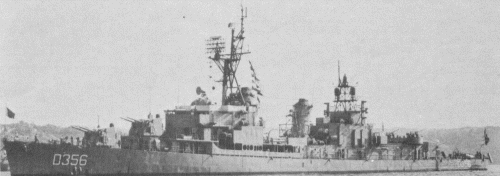

Zafer 1978
