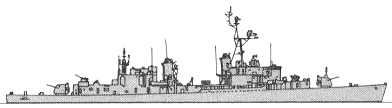

Tinaztepe 1980

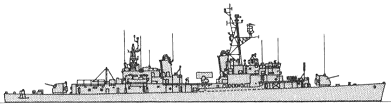

Adatepe 1980

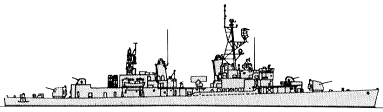

Yücetepe 1990

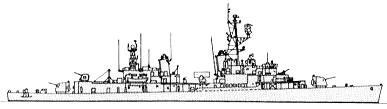

Mareşal Fevzi Çakmak 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Yücetepe (ex-Orleck) | D345 | Consolidated, Orange, USA | 18.11.1944 | 12.5.1945 | 15.9.1945 // 1.10.1982 | stricken 4.1998 | |
| Savaştepe (ex-Meredith) | D348 | Consolidated, Orange, USA | 27.1.1945 | 28.6.1945 | 31.12.1945 // 20.7.1981 | stricken late 1994 | |
| Kılıç Ali Paşa (ex-Robert H. McCard) | D349 | Consolidated, Orange, USA | 26.1.1945 | 9.11.1945 | 26.10.1946 // 5.6.1980 | stricken late 1998 | |
| Piyale Paşa (ex-Fiske) | D350 | Bath Iron Wks, USA | 9.4.1945 | 8.9.1945 | 28.11.1945 // 5.6.1980 | BU 1999 | |
| Mareşal Fevzi Çakmak (ex-Charles H. Roan) | D351 | Bethlehem, Quincy, USA | 27.9.1945 | 15.3.1946 | 12.9.1946 // 29.9.1973 | BU 4.1995 | |
| Gayret (ex-Eversole) | D352 | Todd-Pacific, Seattle, USA | 28.2.1945 | 8.1.1946 | 10.7.1946 // 11.7.1973 | stricken 1995 | |
| Adatepe (ex-Forrest Royal) | D353 | Bethlehem, Staten I, Port Richmond, USA | 6.6.1945 | 17.1.1946 | 28.6.1946 // 27.3.1971 | stricken 1993 | |
| Kocatepe (ex-Harwood) | D354 | Bethlehem, San Pedro, USA | 10/1944 | 24.5.1945 | 28.9.1945 // 17.12.1971 | sunk 22.7.1974 | |
| Kocatepe (ex-Norris) | D354 | Bethlehem, San Pedro, USA | 29.8.1944 | 25.2.1945 | 9.6.1945 // 20.7.1975 | stricken 1993 | |
| Tınaztepe (ex-Keppler) | D355 | Bethlehem, San Francisco, USA | 4.1944 | 24.6.1946 | 23.5.1947 // 30.6.1972 | collision 2.5.1984, stricken |
| Data variant | D345, 348-353 (FRAM I) |
|
Displacement standard, t |
2425 |
|
Displacement full, t |
3600 |
|
Length, m |
116.6 wl 119.0 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
4.56 hull 6.40 over sonar |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
32 |
|
Fuel, t |
oil 720 |
|
Endurance, nm(kts) |
4800(15) |
|
Armament |
D345: 1 x 8 ASROC ASuR (17 RUR-5), 2 x 2 - 127/38 Mk 38, 2 x 3 -3 24 Mk 32 TT, helicopter deck, 1 DCR D348: 2 x 2 - 127/38 Mk 38, 1 x 2 - 35/90 GDM-A, 2 x 3 - 324 Mk 32 TT, helicopter deck, 1 DCR D351-353: 1 х 8 ASROC ASuR (17 RUR-5), 2 x 2 - 127/38 Mk 38, 2 x 3 - 324 TT, 1 DCR D349, 350: 1 х 8 ASROC ASuR (17 RUR-5), 2 x 2 - 127/38 Mk 38, 1 x 2 - 35/90 GDM-A, 2 x 3 - 324 TT, 1 DCR |
|
Electronic equipment |
D345, 349, 350: SPS-10, SPS-29, Mk 25 radars, SQS-23 sonar, WLR-1, WLR-3, ULQ-6 ECM suites, (2-4)x RBOC decoy RL D348: SPS-10, SPS-29, Mk 25 radars, SQS-23 sonar, WLR-1, WLR-3 ECM suites, (2-4)x RBOC decoy RL D351-353: SPS-10, SPS-40, Mk 25 radars, SQS-23 sonar, WLR-1, WLR-3, ULQ-6 ECM suites, (2-4)x RBOC decoy RL |
|
Complement |
310 |
| Data variant | D354, 354, 355 (FRAM II) |
|
Displacement standard, t |
2390 |
|
Displacement full, t |
3480 |
|
Length, m |
116.6 wl 119.0 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
4.60 hull 6.54 over sonar |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
32 |
|
Fuel, t |
oil 720 |
| Endurance, nm(kts) | 4800(15) |
|
Armament |
2 x 2 - 127/38 Mk 38, 2 x 3 - 324 Mk 32 TT, 1 x 24 - 178 Hedgehog Mk15 ASWRL |
|
Electronic equipment |
SPS-10, SPS-6, Mk 25 radars, SQS-23 sonar, WLR-1 ECM suite, 2x RBOC decoy RL |
|
Complement |
274 |
Project history: These were all ex-US Gearing class destroyers. Adatepe was purchased on 15 February 1973, two years after first being transferred. The first Kocatepe was sunk in error by Turkish Air Force jets on 22 July 1974 during the landing on Cyprus, having been mistaken for a Greek ship. The ex-Norris, which had been bought for spares, was hurriedly refitted and renamed Kocatepe, commissioning on 20 July 1975. Another ship originally purchased for cannibalization, the ex-Meredith, was also refitted and commissioned as Savaştepe on 20 Jury 1981. The ex-Robert H McCord and Fiske were leased to Turkey in 1980 and were purchased on 6 August 1987, along with ex-Orleck acquired in 1982. An eleventh Gearing, the ex-McKean, previously damaged in a collision, was transferred for cannibalization in 1982. Tinaztepe and both Kacatepes were FRAM II conversions, all remainder were FRAM I.
Modernizations: 1974, Kocatepe, Tınaztepe: + 2 x 1 - 40/60 Mk 3
mid-1970s, Mareşal Fevzi Çakmak, Gayret, Adatepe: + 1 x 2 - 40/60 Mk 1, 1 x 2 - 35/90 GDM-A
1977, Kocatepe, 1979, Tınaztepe: + 2 x 2 40/60 Mk 1, Mk 37 radar
1980, Kocatepe: - 2 x 1 - 40/60, SPS-6 radar; + 1 x 2 - 35/90 GDM-A, SPS-40 radar
1984, Yücetepe: + 1 x 2 - 35/90 GDM-A, 2 x 1 - 40/60 Mk 3
mid-1980s, Mareşal Fevzi Çakmak, Gayret, Adatepe: - 1 x 2 - 40/60; + 1 x 2 - 35/90 GDM-A
1986, Mareşal Fevzi Çakmak, Gayret: + 2 x 4 Harpoon SSM (8 RGM-84A)
1993, Yücetepe, 1995, Kılıç Ali Paşa: - WLR-1, WLR-3, ULQ-6 ECM suites; + Cutlass B1, Cygnus ECM suites
Naval service: The first Kocatepe was sunk in error by Turkish Air Force jets on 22 July 1974 during the landing on Cyprus, having been mistaken for a Greek ship. Tınaztepe was badly damaged in a collision 2.5.1984 with tanker Aygaz-3 in the Izmit Gulf and stricken 31.10.1984 without repair.

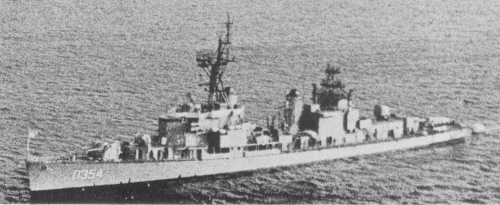

Kocatepe 1979

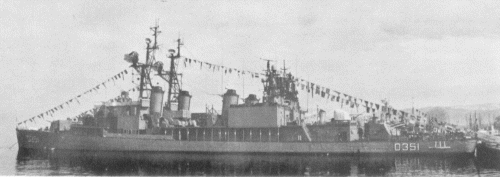

Mareşal Fevzi Çakmak 1980
