| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Mansure | Tersane-i Amire, Istanbul | 1863 | 1864 | 1864 | stricken 1908 | ||
| Lübnan | Tersane-i Amire, Istanbul | 1862 | 1864 | 1864 | foundered 4.1867 | ||
| Muzaffer | Tersane-i Amire, Izmir | 1863 | 1864 | 1864 | stricken 1908 |
|
Displacement normal, t |
783 bm |
|
Displacement full, t |
|
|
Length, m |
55.1 oa 52.6 pp |
|
Breadth, m |
9.30 |
|
Draught, m |
4.40 |
|
No of shafts |
1 |
|
Machinery |
1 2-cyl HSE, 2 rectangular boilers |
|
Power, h. p. |
650 |
|
Max speed, kts |
10 |
|
Fuel, t |
coal 120 |
| Endurance, nm(kts) | |
|
Armament |
12 x 1 - 121/14 37pdr SBML |
|
Complement |
130 |
Project history: Wooden-hulled, ship-rigged sloops, these vessels were sheathed and coppered and featured raked masts and one funnel between the fore- and mainmasts.
Modernizations: 1888, both survived: were armed with 2 x 1 - 149/22 RK L/25 C/75, 2 x 1 - 120/22 RK L/25 C/78, 3 x 1 - 37/20 Hotchkiss, 2 x 1 - 25/42 Nordenfelt.
Naval service: Lübnan foundered in April 1867 off Milo Ada in heavy weather.

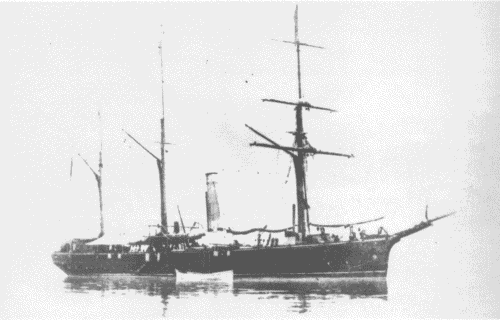

Muzaffer
© Ivan Gogin, 2014
