Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| SG80 | Taşkizak NSY, Istanbul | 6.1996 | in service (2019) | ||||
| SG81 | Taşkizak NSY, Istanbul | 5.7.1996 | in service (2019) | ||||
| SG82 | Taşkizak NSY, Istanbul | 1996 | in service (2019) | ||||
| SG83 | Taşkizak NSY, Istanbul | 5.1997 | in service (2019) | ||||
| SG84 | Taşkizak NSY, Istanbul | 1997 | in service (2019) | ||||
| SG85 | Taşkizak NSY, Istanbul | 1998 | in service (2019) | ||||
| SG86 | Taşkizak NSY, Istanbul | 8.6.2000 | in service (2019) | ||||
| SG87 | Taşkizak NSY, Istanbul | 8.6.2000 | in service (2019) | ||||
| SG88 | Taşkizak NSY, Istanbul | 2002 | in service (2019) | ||||
| SG89 | Istanbul NSY | 2001 | in service (2019) | ||||
| SG90 | Taşkizak NSY, Istanbul | 2001 | in service (2019) | ||||
| SG91 | Taşkizak NSY, Istanbul | 2004 | in service (2019) | ||||
| SG92 | Taşkizak NSY, Istanbul | 2010 | in service (2019) | ||||
| SG93 | Taşkizak NSY, Istanbul | 2010 | in service (2019) | ||||
| SG94 | Taşkizak NSY, Istanbul | 2010 | in service (2019) | ||||
| SG95 | Taşkizak NSY, Istanbul | 2011 | in service (2019) | ||||
| SG96 | Taşkizak NSY, Istanbul | 2011 | in service (2019) | ||||
| SG97 | Taşkizak NSY, Istanbul | 2013 | in service (2019) | ||||
| KKSG01 | Taşkizak NSY, Istanbul | 2004 | in service (2019) | ||||
| KKSG02 | Taşkizak NSY, Istanbul | 2004 | in service (2019) |
|
Displacement standard, t |
180 |
|
Displacement full, t |
200 |
|
Length, m |
42.3 pp 44.9 oa |
|
Breadth, m |
7.00 |
|
Draught, m |
2.59 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V538 TB82 diesels |
|
Power, h. p. |
4430 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2400(14) |
|
Armament |
1 x 1 - 40/70 Bofors 315, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Decca radar |
|
Complement |
32 |
Project history: More conventional hull form than the SG71 and SAR33 classes. A firefighting water monitor is mounted aft. KKSG01 and 02 were built for North Cyprus.
Modernizations: None.
Naval service: No significant events.

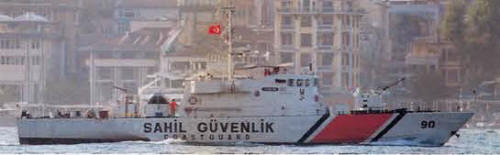

SG90 2008

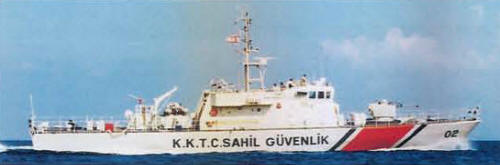

KKSG02 1994
