Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| SG71 | Taşkizak NSY, Istanbul | 25.7.1985 | in service (2019) | ||||
| SG72 | Taşkizak NSY, Istanbul | 25.7.1985 | 1986 | in service (2019) | |||
| SG73 | Taşkizak NSY, Istanbul | 1986 | in service (2019) | ||||
| SG74 | Taşkizak NSY, Istanbul | 24.7.1987 | 1987 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
210 |
|
Length, m |
36.6 |
|
Breadth, m |
8.60 |
|
Draught, m |
1.90 |
|
No of shafts |
3 |
|
Machinery |
3 SACM-AGO 195V16 CSHR diesels |
|
Power, h. p. |
7200 |
|
Max speed, kts |
33 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1000(20) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Decca TM1226 radar |
|
Complement |
24 |
Project history: SAR35 class, lengthened SAR33 with longer superstructure.
Modernizations: 2008-2010, all: were re-engined (2 propellers, 2 MTU 16V4000 M90 diesels, 7400hp, 33kts)
Naval service: No significant events.

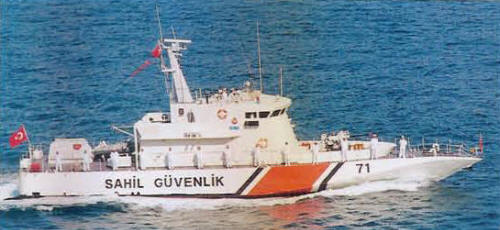

SG71 2000
