SG301 2010
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| SG301 | Yonca-Onuk, Tuzla | 7.2004 | in service (2019) | ||||
| SG302 | Yonca-Onuk, Tuzla | 7.2005 | in service (2019) | ||||
| SG303 | Yonca-Onuk, Tuzla | 9.2005 | in service (2019) | ||||
| SG304 | Yonca-Onuk, Tuzla | 9.2006 | in service (2019) | ||||
| SG305 | Yonca-Onuk, Tuzla | 9.2006 | in service (2019) | ||||
| SG306 | Yonca-Onuk, Tuzla | 9.2006 | in service (2019) | ||||
| SG307 | Yonca-Onuk, Tuzla | 12.2006 | in service (2019) | ||||
| SG308 | Yonca-Onuk, Tuzla | 4.2007 | in service (2019) | ||||
| SG309 | Yonca-Onuk, Tuzla | 7.2007 | in service (2019) | ||||
| SG310 | Yonca-Onuk, Tuzla | 4.2008 | in service (2019) | ||||
| SG311 | Yonca-Onuk, Tuzla | 7.2008 | in service (2019) | ||||
| SG312 | Yonca-Onuk, Tuzla | 10.2008 | in service (2019) | ||||
| SG313 | Yonca-Onuk, Tuzla | 1.2009 | in service (2019) | ||||
| SG314 | Yonca-Onuk, Tuzla | 2010 | in service (2019) | ||||
| SG315 | Yonca-Onuk, Tuzla | 2010 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
124 |
|
Length, m |
33.0 pp 35.6 oa |
|
Breadth, m |
6.70 |
|
Draught, m |
1.40 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 16V4000 M90 diesels |
|
Power, h. p. |
7400 |
|
Max speed, kts |
47 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 650(20) |
|
Armament |
SG301-306, 308, 309, 311, 313-315: 1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 SG307, 310, 312: 1 x 1 - 20/70 STAMP, 1 x 1 - 12.7/90 |
|
Electronic equipment |
2x radars |
|
Complement |
18 |
Project history: Kaan 33 (MRTP33) design. A small RIB is carried aft.
Modernizations: None.
Naval service: No significant events.

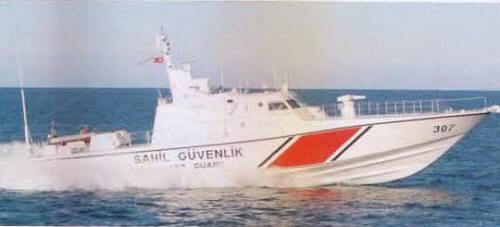

SG307 2008
