SG61 1990
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| J61, 1981- SG61 | Abeking & Rasmussen, Lemwerder, West Germany | 12.12.1977 | 1978 | in service (2019) | |||
| J62, 1981- SG62 | Taşkizak NSY, Istanbul | 7.1978 | 1979 | in service (2019) | |||
| J63, 1981- SG63 | Taşkizak NSY, Istanbul | 1980 | in service (2019) | ||||
| J64, 1981- SG64 | Taşkizak NSY, Istanbul | 1980 | in service (2019) | ||||
| SG65 | Taşkizak NSY, Istanbul | 30.7.1981 | in service (2019) | ||||
| SG66 | Taşkizak NSY, Istanbul | 30.7.1981 | in service (2019) | ||||
| SG67 | Taşkizak NSY, Istanbul | 30.7.1981 | in service (2019) | ||||
| SG68 | Taşkizak NSY, Istanbul | 1982-84 | in service (2019) | ||||
| SG69 | Taşkizak NSY, Istanbul | 1982-84 | in service (2019) | ||||
| SG70 | Taşkizak NSY, Istanbul | 1982-84 | in service (2019) |
|
Displacement standard, t |
150 |
|
Displacement full, t |
170 |
|
Length, m |
29.0 wl 33.5 oa |
|
Breadth, m |
8.60 |
|
Draught, m |
1.80 |
|
No of shafts |
3 |
|
Machinery |
3 SACM-AGO 195V16 CSHR diesels |
|
Power, h. p. |
7200 |
|
Max speed, kts |
33 |
|
Fuel, t |
diesel oil 18 |
| Endurance, nm(kts) | 1000(20) |
|
Armament |
1 x 1 - 40/60 Mk 3 or 1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Decca TM1226 radar |
|
Complement |
23 |
Project history: SAR33 class. Wedge-shaped hull design of remarkable seaworthiness and steadiness at high speed in heavy weather.
Modernizations: None.
Naval service: No significant events.

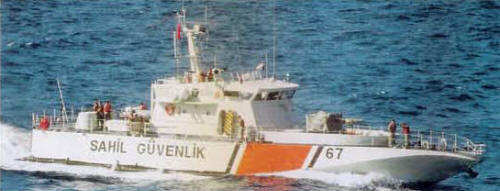

SG67 2004
