Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
| J21, 1981- SG21, 2002- SG121 | GölçüK NSY | 1968 | stricken 2015-16 | ||||
| J22, 1981- SG22, 2002- SG122 | GölçüK NSY | 1968 | stricken 2015-16 | ||||
| J23, 1981- SG23, 2002- SG123 | Taşkizak NSY, Istanbul | 1969 | stricken 2015-16 | ||||
| J24, 1981- SG24, 2002- SG124 | Taşkizak NSY, Istanbul | 1969 | stricken 2015-16 | ||||
| J25, 1981- SG25, 2002- SG125 | Taşkizak NSY, Istanbul | 1969 | stricken 2015-16 | ||||
| J26, 1981- SG26, 2002- SG126 | Taşkizak NSY, Istanbul | 1969 | stricken 2015-16 | ||||
| J27, 1981- SG27, 2002- SG127 | Taşkizak NSY, Istanbul | 1969 | in service (2019) | ||||
| J28, 1981- SG28, 2002- SG128 | Taşkizak NSY, Istanbul | 1970 | stricken 2015-16 | ||||
| J29, 1981- SG29, 2002- SG129 | Taşkizak NSY, Istanbul | 1971 | in service (2019) | ||||
| J30, 1981- SG30, 2002- SG130 | Taşkizak NSY, Istanbul | 1971 | in service (2019) | ||||
| J31, 1981- SG31, 2002- SG131 | Taşkizak NSY, Istanbul | 1972 | stricken 2015-16 | ||||
| J32, 1981- SG32, 2002- SG132 | Taşkizak NSY, Istanbul | 1972 | stricken 2015-16 | ||||
| J33, 1981- SG33, 2002- SG133 | Taşkizak NSY, Istanbul | 1972 | stricken 2015-16 | ||||
| J34, 1981- SG34, 2002- SG134 | Taşkizak NSY, Istanbul | 1977 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
170 |
|
Length, m |
40.2 |
|
Breadth, m |
6.40 |
|
Draught, m |
1.65 |
|
No of shafts |
2 |
|
Machinery |
2 SACM-AGO 195V16 CSHR diesels / 2 cruise diesels |
|
Power, h. p. |
4800 / 300 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
J21-29: 2 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10 J30-34: 2 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Decca TM1226 radar |
|
Complement |
25 |
Project history: AB25 class, sisters were built for the Navy.
Modernizations: None.
Naval service: No significant events.

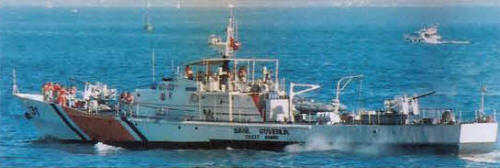

SG131 2007
