J12 1970
|
Names |
J12, 1981- SG12 J13, 1981- SG13, 2002- SG113 J14, 1981- SG14, 2002- SG114 J15, 1981- SG15, 2002- SG115 J16, 1981- SG16, 2002- SG116 J17, 1981- SG17 J18, 1981- SG18, 2002- SG118 J19, 1981- SG19, 2002- SG119 J20, 1981- SG20, 2002- SG120 |
|
Builders |
Schweers, Bardenfleth, West Germany: J12-20 |
|
Commissioned |
1961: J12-15 1962: J16-20 |
|
Losses |
None |
|
Transfers |
none |
|
Discarding |
early 1980s: SG17 2004: SG112 2008-2012: SG113-116, 118-120 |
|
Displacement standard, t |
60 |
|
Displacement full, t |
70 |
|
Length, m |
28.9 |
|
Breadth, m |
4.70 |
|
Draught, m |
1.42 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12-cyl. diesels |
|
Power, h. p. |
2000 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil 8 |
| Endurance, nm(kts) | 1500(19) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10 |
|
Electronic equipment |
radar |
|
Complement |
15 |
Project history: German KW15 class.
Modernizations: None.
Naval service: No significant events.

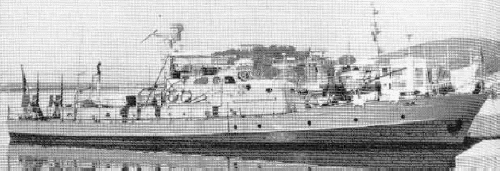

SG15 1982
