Names |
V101-108 |
|
Builders |
CN de l'Esterel, France: V101-108 |
|
Completed |
1961: V101, 102 1962: V103, 104 1963: V105, 106 1964: V107, 108 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1971: V107, 108 in service (2019): V101-106 |
|
Displacement standard, t |
|
|
Displacement full, t |
38 - 39 |
|
Length, m |
25.0 |
|
Breadth, m |
4.75 |
|
Draught, m |
1.25 |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 12V71 TI diesels |
|
Power, h. p. |
940 |
|
Max speed, kts |
23 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 900(16) |
|
Armament |
1 x 1 - 20/70 Mk 10 |
| Electronic equipment | Decca 1226 radar |
|
Complement |
11 |
Project history: French 25m class patrol boats.
Modernizations: None.
Naval service: Two boats, V107 and V108, were transferred unarmed fro Fisheries Administration in 1971 as Sabeq el Bahr and Jaouel el Bahr.

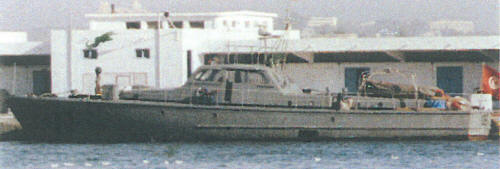

V105 1974
V106 1995
