TUNISIAN NAVY (TUNISIA)

COASTAL FORCES

UTIQUE patrol boats (1994)

Name No Yard No Builder Laid down Launched Comp Fate
عتيق [Utique] P207   China     3/1994 stricken 2018
جربة [Jerba] P208   China     3/1994 in service (2019)
قرية [Kuriat] P209   China     3/1994 in service (2019)



Displacement standard, t



Displacement full, t

120

Length, m

35.0

Breadth, m

5.40

Draught, m

1.80

No of shafts

4

Machinery

4 MWM TB604 BV12 diesels

Power, h. p.

4400

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts)

800(17)

Armament

2 x 2 - 25/82 type 81

Sensors

type 756 radar

Complement

39

Project history: Shortened Chinese type 062-I variant with larger superstructure and lighter armament.

Modernizations: None.

Naval service: No significant events.

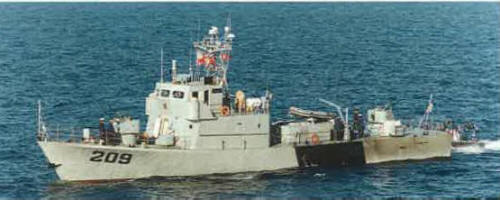

Kuriat 1995
