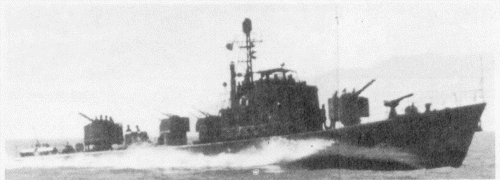

Gafsa 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| جافزا [Gafsa] | P305 | China | 2.5.1977 | stricken 1994 | |||
| حملكر [Hamilcar] | P306 | China | 2.5.1977 | stricken 1994 |
|
Displacement standard, t |
123 |
|
Displacement full, t |
135 |
|
Length, m |
38.8 |
|
Breadth, m |
5.41 |
|
Draught, m |
1.55 |
|
No of shafts |
4 |
|
Machinery |
2 M-50F-4 diesels, 2 12D6 diesels |
|
Power, h. p. |
4200 (2x1200+2x910) |
|
Max speed, kts |
28.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
800(17) |
|
Armament |
2 x 2 - 37/63 type 66, 2 x 2 - 25/82 type 61 |
|
Sensors |
radar |
|
Complement |
38 |
Project history: Chinese type 062-I patrol boat, without ASW abilities.
Modernizations: 1984, both: were re-engined with 4 MTU 9V331 TC92 diesels (4260hp, 28.5kts)
Naval service: No significant events.
