Names |
CG11 Scarlet Ibis CG12 Hibiscus CG13 Humming Bird CG14 Chanonia CG15 Poui CG16 Teak |
|
Builders |
Austal, Henderson, Australia: CG11-16 |
|
Completed |
2009: CG11-13 2010: CG14-16 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2020): CG11-16 |
|
Displacement standard, t |
|
|
Displacement full, t |
85 |
|
Length, m |
24.6 pp 30.0 oa |
|
Breadth, m |
6.40 |
|
Draught, m |
1.50 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 16V2000 M92 diesels |
|
Power, h. p. |
4435 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(10) |
|
Armament |
1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Sperry radar |
|
Complement |
11 |
Project history: Aluminium hull, ordered in 2008.
Modernizations: None.
Naval service: No significant events.

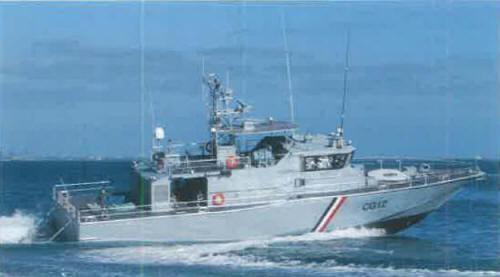

Hibiscus 2009
