| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Gaspar Grande (ex-Tammany) | CG21 | USA | 1999 // 20.3.2008 | discarded 2015 | |||
| Chacachacare (ex-Andrew) | CG22 | USA | 1999 // 20.3.2008 | discarded 2015 |
|
Displacement standard, t |
|
|
Displacement full, t |
203 |
|
Length, m |
46.3 |
|
Breadth, m |
9.10 |
|
Draught, m |
2.50 |
|
No of shafts |
2 |
|
Machinery |
4 Cummins K38 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3300(12) |
|
Armament |
2 x 1 - 30/75 DS-30, 2 x 1 - 12.7/90 |
|
Electronic equipment |
nav. radar |
|
Complement |
19 |
Project history: Former oil rig support ships acquired as a stop-gap until larger OPVs could be acquired. Commissioned 23.4.2008.
Modernizations: None.
Naval service: No significant events.

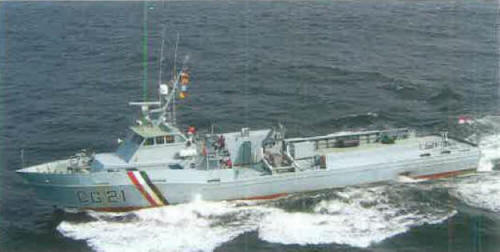

Gaspar Grande 2009
