NEIAFU patrol boats (1989-1991)
Neiafu 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Neiafu | P201 | ASI, Jervis Bay, Australia | 30.1.1989 | 21.9.1989 | 28.10.1989 | in service (2020) | |
| Pangai | P202 | ASI, Jervis Bay, Australia | 2.10.1989 | 1990 | 30.6.1990 | in service (2020) | |
| Savea | P203 | ASI, Jervis Bay, Australia | 2/1990 | 1991 | 23.3.1991 | in service (2020) |
|
Displacement standard, t |
|
|
Displacement full, t |
165 |
|
Length, m |
28.6 pp 31.5 oa |
|
Breadth, m |
8.10 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3516 diesels |
|
Power, h. p. |
2820 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil 28 |
|
Endurance, nm(kts) |
2500(12) |
|
Armament |
3 x 1 - 12.7/90 |
| Electronic equipment | Furuno 1011 radar |
|
Complement |
17 |
Project history: ASI315, or 'Pacific Patrol Boat' design, built as grant-aid by Australia. Aluminium construction.
Modernizations: None.
Naval service: No significant events.

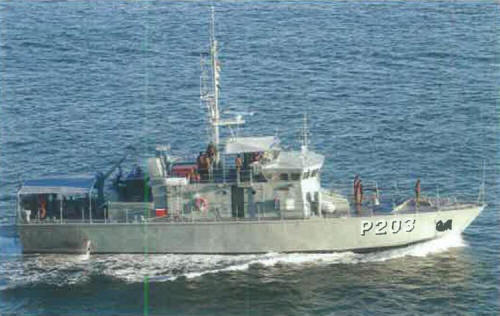

Savea 2013
© Ivan Gogin, 2020
