TOGOLESE NAVY (TOGO)

COASTAL FORCES

AGOU patrol boats (2014)

Name No Yard No Builder Laid down Launched Comp Fate
Agou P763   UFAST, Quimper, France // Raidco-Marine, Lorient, France   30.1.2014 31.3.2014 in service (2020)
Oti P764   UFAST, Quimper, France // Raidco-Marine, Lorient, France   30.4.2014 8.7.2014 in service (2020)





Displacement standard, t



Displacement full, t

100

Length, m

34.0

Breadth, m

6.53

Draught, m

1.90

No of shafts

2

Machinery

2 MTU 12V2000 M72 diesels

Power, h. p.

2940

Max speed, kts

23

Fuel, t

diesel oil

Endurance, nm(kts)

1500(15)

Armament

1 x 1 - 12.7/90, 2 x 1 - 7.6/90

Electronic equipment

Furuno radar

Complement

17



Project history: French RPB33 class. Steel hull with aluminium superstructure. Small RHIB is carried on platform aft.



Modernizations: None.



Naval service: No significant events.

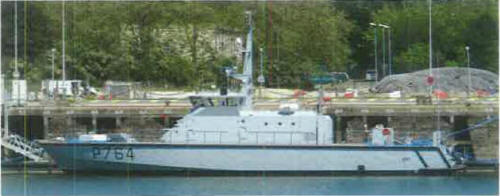

Oti 2014
