Bhali 1930
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| ทีพฟะ้ฟ [Muratha] | Hongkong & Whampoa, Hongkong, UK | 1898 | 1898 | stricken 12.1929 | |||
| จังหวัดบาหลี [Bali] | Hongkong & Whampoa, Hongkong, UK | 1900 | 1900 | stricken 7.1935 | |||
| หีเพริ [Sugrib] | Hongkong & Whampoa, Hongkong, UK | 1901 | 1901 | stricken 7.1935 |
|
Displacement normal, t |
Muratha: 530 Bali, Sugrib: 580 |
|
Displacement full, t |
|
|
Length, m |
Muratha: 44.2 Bali, Sugrib: 49.4 |
|
Breadth, m |
7.01 |
|
Draught, m |
3.05 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 boilers |
|
Power, h. p. |
500 |
|
Max speed, kts |
11.4 |
|
Fuel, t |
coal |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 120/40 Armstrong QF, 5 x 1 - 57/40 Hotchkiss, 4 x 1 - 37/20 Hotchkiss |
|
Complement |
83 |
Project history: Colonial steel-hulled gunboats with ram bow, two masts, one funnel and flush deck.
Modernizations: None.
Naval service: No significant events.

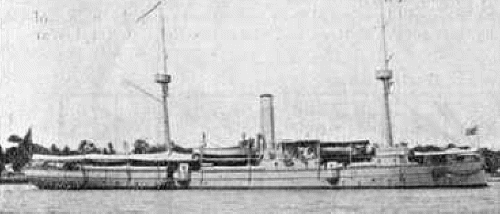

Sugrib 1932
