Latya 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| ลาดหญ้า [Latya] | 633 | Intermarine, Sarzana, Italy | 18.11.1996 | 30.3.1998 | 18.6.1999 | in service (2019) | |
| ท่าดินแดง [Thadin Daeng] | 634 | Intermarine, Sarzana, Italy | 18.9.1997 | 31.10.1998 | 18.12.1999 | in service (2019) |
|
Displacement standard, t |
590 |
|
Displacement full, t |
650 |
|
Length, m |
48.1 pp 52.5 oa |
|
Breadth, m |
9.87 |
|
Draught, m |
2.75 |
|
No of shafts |
2 Voith-Schneider |
|
Machinery |
2 MTU 8V396 TE74K diesels |
|
Power, h. p. |
1600 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2000(12) |
|
Armament |
1 x 1 - 30/80 DS-30B, 2 Pluto-Plus USV, Oropesa Mk 4 mechanical, Mini-Dyad, MS106 magnetic/acoustic minesweeping gear |
| Electronic equipment | KAE 9600M radar, DSQS-11M sonar |
| Complement | 47 |
Project history: Ordered in 1996, Italian Gaeta class. GRP foam-core hull. Have decompression chamber for two of seven mine-disposal divers. MWS-80-6 mine countermeasure system.
Modernizations: None.
Naval service: No significant events.

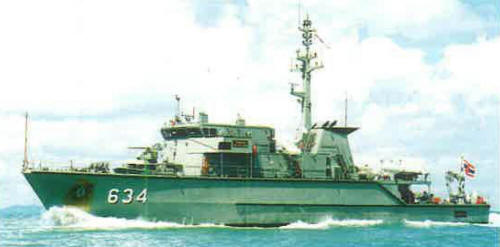

Thadin Daeng 2004
