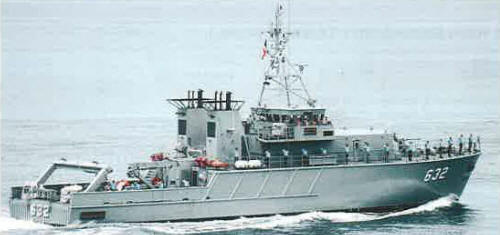

Bangrachan 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| บางระจัน [Bangrachan] | 2, 1992- 631 | Lürssen, Vegesack, West Germany | 1986 | 1/1987 | 29.4.1987 | in service (2019) | |
| หนองสาหร่าย [Nongsarai] | 3, 1992- 632 | Lürssen, Vegesack, West Germany | 1986 | 3/1987 | 17.11.1987 | in service (2019) |
|
Displacement standard, t |
390 |
|
Displacement full, t |
445 |
|
Length, m |
45.7 pp 49.1 oa |
|
Breadth, m |
9.30 |
|
Draught, m |
2.50 |
|
No of shafts |
2 with active rudders |
|
Machinery |
2 MTU 12V396 TB83 diesels |
|
Power, h. p. |
3000 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3100(12) |
|
Armament |
3 x 1 - 20/90 GAM-B01, mines, 2 Pluto USV, SDG31 mechanical, magnetic, acoustic minesweeping gear |
| Electronic equipment | Decca 1229 radar, DSQS-11H sonar |
| Complement | 40 |
Project history: Lürssen M48 design, ordered in 1984 and 1985. They have wooden hull with non-magnetic metal framing and superstructure. Carry 30 mine disposal charges for Plutos. MWS-80R mine-countermeasure system.
Modernizations: late 2010s, both: - Decca 1229 radar; + 2x KAE8600 radars
Naval service: No significant events.
Nongsarai 2005
