very similar Venezuelan Capana 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| สีชัง [Sichang] | 6, 1992- 721 | ItalTahi, Bangkok | 24.4.1987 | 8.1.1988 | in service (2019) | ||
| สุรินทร์ [Surin] | 7, 1992- 722 | Naval DYd, Bangkok | 12.4.1988 | 16.12.1988 | in service (2019) |
|
Displacement standard, t |
721: 3540 |
|
Displacement full, t |
721: 4235 722: 4520 |
|
Length, m |
721: 91.7 pp 103.0 oa 722: 109.0 |
|
Breadth, m |
15.7 |
|
Draught, m |
3.52 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 20V1163 TB62 diesels |
|
Power, h. p. |
11000 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(14) |
|
Armament |
2 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90, 1 x 1 - 81/12 M29 mortar, helicopter deck |
|
Military load |
3 LCVP, 13 tanks, 6 3t vehicles, 350 troops |
|
Electronic equipment |
Decca 1226 radar, 2x Sea Archer Mk 1A mod. 2 e/o systems |
|
Complement |
129 |
Project history: Built under license to the modified French PS700 (Normed 700) design with Korea-Tacoma technical assistance.
Modernizations:
None.Naval service: No significant events.

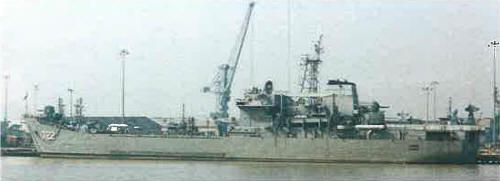

Sichang 2011

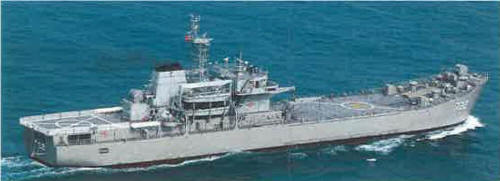

Surin 2001
