Mattapon 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| มัตโพน [Mattapon] | 784 | Marsun, Bangkok | 8.12.2010 | in service (2019) | |||
| ราวี [Rawi] | 785 | Marsun, Bangkok | 8.12.2010 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
450 |
|
Length, m |
55.0 |
|
Breadth, m |
11.0 |
|
Draught, m |
1.60 |
|
No of shafts |
2 |
|
Machinery |
2 MAN D2842LE412 diesels |
|
Power, h. p. |
1600 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
|
Military load |
5 5t trucks |
|
Electronic equipment |
2x nav. radars |
|
Complement |
33 |
Project history: Locally designed. Ordered in September 2008.
Modernizations:
None.Naval service: No significant events.

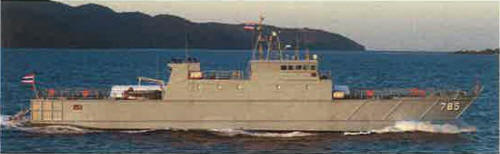

Rawi 2011
