Kut 1946
Kram 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| เกาะกูด [Kut] (ex-LSM333) | 1, 1992- 731 | Pullman Standard Car, Chicago, USA | 6/1944 | 13.10.1944 | 11.1944 // 10.1946 | sunk as target 17.9.2006 | |
| เกาะไผ่ [Phai] (ex-LSM338) | 2 | Pullman Standard Car, Chicago, USA | 8/1944 | 5.12.1944 | 1.1945 // 10.1946 | stricken 1990 | |
| เกาะคราม [Kram] (ex-LSM469) | 3, 1992- 732 | Brown SB, Houston, USA | 1945 | 1945 | 3.1945 // 5.1962 | sunk as target 2.2003 |
|
Displacement standard, t |
520 |
|
Displacement full, t |
1095 |
|
Length, m |
59.9 wl 62.0 oa |
|
Breadth, m |
10.5 |
|
Draught, m |
landing: 1.07 fore, 2.13 aft |
|
No of shafts |
2 |
|
Machinery |
4 General Motors diesels |
|
Power, h. p. |
2800 |
|
Max speed, kts |
12.5 - 13.2 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4900 (12) |
|
Armament |
1 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10 |
| Military load |
5 medium or 3 heavy tanks or 6 LVT or 9 DUKW, 48 - 54 marines |
|
Sensors |
SO-8 or SPS-5 radar |
| Complement | 60 |
Project history: Former LSM1 class medium landing ships. Kram was transferred under MAP.
Modernizations:
None.Naval service: No significant events.

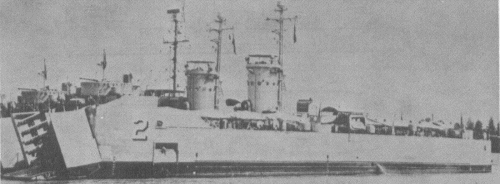

Phai 1970s

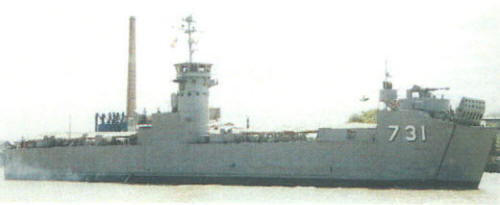

Kut 1998
