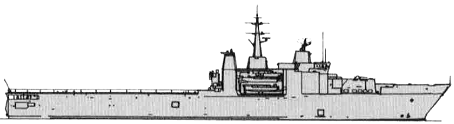

Angthong 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| อ่างทอง [Angthog] | 791 | ST Marine, Singapore | 6.2010 | 20.3.2011 | 3.4.2012 | in service (2019) |
|
Displacement standard, t |
6000 |
|
Displacement full, t |
7600 |
|
Length, m |
141.0 |
|
Breadth, m |
21.0 |
|
Draught, m |
5.00 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar C280-12 diesels |
|
Power, h. p. |
11045 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
5000(12) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 30/80 Seahawk DS-30MR, 2 x 1 - 12.7/90, 2 helicopters (2 S-70B or 1 CH-47D) |
|
Military load |
2 LCM, 4 STM-type LCVP, 1000t of cargo (18 tanks, 20 other vehicles, 350 troops) |
|
Electronic equipment |
Scanter 4100, nav., C-Fire radars, ECM suite, 2x decoy RL, C-Flex CCS |
|
Complement |
135 |
Project history: Ordered in November 2018. Has 60t capacity 16.8x4.05m bow ramp and stern docking capacity for 2 LCMs or 4 LCVPs on the main vehicle deck, two 22t capacity 18x6m internal elevators connect vehicle and upper decks. Stern door swings down to form 66t capacity 7x15.6m vehicle ramp. There are two 25t cranes. 4 LCVPs are carried on davits.
Modernizations:
None.Naval service: No significant events.

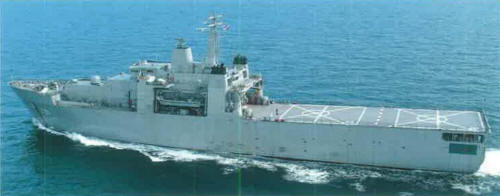

Angthong 2012
