Phuttha Yotfa Chulalok 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| พุทธยอดฟ้าจุฬาโลก [Phuttha Yotfa Chulalok] (ex-Truett) | 461 | Avondale, Westwego, USA | 27.4.1972 | 3.2.1973 | 1.6.1974 // 30.7.1994 | stricken 4.2015 | |
| พุทธเลิศหล้านภาลัย [Phuttha Loetla Naphalai] (ex-Ouellet) | 462 | Avondale, Westwego, USA | 15.1.1969 | 17.1.1970 | 12.12.1970 // 27.11.1996 | stricken 9.2017 |
|
Displacement standard, t |
3020 |
|
Displacement full, t |
4066 |
|
Length, m |
126.5 wl 133.5 oa |
|
Breadth, m |
14.3 |
|
Draught, m |
7.60 |
|
No of shafts |
1 |
|
Machinery |
461: 1 set Westinghouse geared steam turbines, 2 Combustion Engineering boilers 462: 1 set Westinghouse geared steam turbines, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
35000 |
|
Max speed, kts |
27 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 4500(20) |
|
Armament |
1 x 8 Harpoon SSM / ASROC ASuR (4 RGM-84A, 12 RUR-5), 1 x 1 - 127/54 Mk 42, 1 x 6 - 20/76 Phalanx Mk 15, 4 x 1 - 12.7/90, 4 - 324 Mk 32 TT (22), 1 helicopter (S-2F) |
|
Electronic equipment |
461: LN-66, SPS-10 or SPS-67, SPS-40D, SPG-53F radars, SQS-26CX, SQR-18(v) sonars, SLQ-32(v)2 ECM suite, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, ASWTDS CCS 462: LN-66, SPS-10 or SPS-67, SPS-40D, SPG-53F radars, SQS-26CX, SQR-18A(v)2 sonars, SLQ-32(v)2 ECM suite, 2x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, ASWTDS CCS |
|
Complement |
285 |
Project history: Former USN Knox class frigates. Phuttha Loetla Naphalai was really transferred only in May 1998 after reactivation and refit.
Modernizations: None.
Naval service: No significant events.

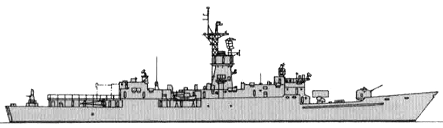

Phuttha Loetla Naphalai 2001
