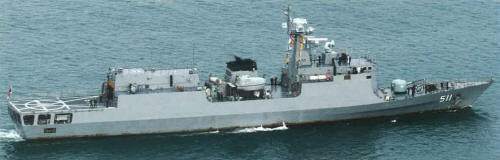

Pattani 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| ปัตตานี [Pattani] | 511 | Hudong, Shanghai | 2003 | 19.9.2004 | 16.12.2005 | in service (2019) | |
| นราธิวาส [Narathiwat] | 512 | Hudong, Shanghai | 2004 | 3.2005 | 24.4.2006 | in service (2019) |
|
Displacement standard, t |
1300 |
|
Displacement full, t |
1635 |
|
Length, m |
95.5 |
|
Breadth, m |
11.6 |
|
Draught, m |
3.10 |
|
No of shafts |
2 |
|
Machinery |
2 Ruston 16RK270 diesels |
|
Power, h. p. |
15660 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3500(15) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 Vector GI2, 1 helicopter (Z-9) |
|
Electronic equipment |
RAN-30X, TMX/EO, 3x Raytheon radars, COSYS Mk 1 CCS |
|
Complement |
78 |
Project history: Ordered 21.12.2002 with option for two more. Place for 8 SSMs is reserved.
Modernizations: None.
Naval service: Narathiwat was badly damaged by running a coastal rock 13.9.2010.
Pattani 2008
