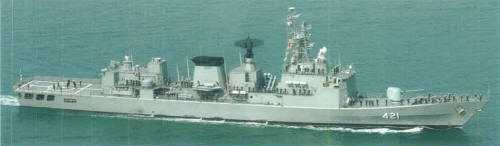

Naresuan 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| นเรศวร [Naresuan] | 621, 1995- 421 | Zhonghua, Shanghai, China | 11.1991 | 24.7.1993 | 15.12.1994 | in service (2019) | |
| ตากสิน [Taksin] | 622, 1995- 422 | Zhonghua, Shanghai, China | 11.1992 | 14.5.1994 | 28.9.1995 | in service (2019) |
|
Displacement standard, t |
2500 |
|
Displacement full, t |
3000 |
|
Length, m |
120.5 |
|
Breadth, m |
13.4 |
|
Draught, m |
3.85 hull |
|
No of shafts |
2 |
|
Machinery |
CODOG: 2 General Electric LM2500 gas turbines / 2 MTU 20V1163 TB83 diesels |
|
Power, h. p. |
55000 / 14800 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4000(18) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84A), 1 x 1 - 127/54 Mk 45 mod.2, 2 x 2 - 37/76 type 76A-88, 2 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 mod.5 TT (Mk 46 mod.5), 1 helicopter (Super Lynx 300) |
|
Electronic equipment |
LW-08, type 360, SPS-64(v)15, SPS-64(v)5, STIR-1.8, type 347G radars, JM-83H e/o director, SJD-7 sonar, Mirage NRJ-5, type 945GPJ ECM suites, 4x type 945 decoy RL |
|
Complement |
168 |
Project history: Chinese type 25T, desined for export. Ordered 21.9.1989. At the time of formal commission in December 1994 first ship carried only Chinese armament and electronics, Western equipment was installed completely only in October 1995. Two Super Lynx helicopters for thee sips arrived Thailand only in 2005.
Modernizations: 2013-2015, both: - type 360, type 347G, STIR-1.8, SPS-64(v)15, SPS-64(v)5 radars, JM-83H e/o system, SJD-7 sonar, Mirage NRJ-5, type 945GPJ ECM suites, 4x type 945 decoy RL; + 1 x 8 ESSM SAM (32 RIM-162A), Sea Giraffe AMD, 2x Sharp Eye, 2x CEROS 200 radars, EOS500 e/o system, DSQS-24D sonar, Condor ES-3701 ECM suite, 4x SKWS decoy RL, 9LV Mk 4 CCS
Naval service: No significant events.

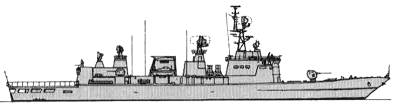

Naresuan 2008
