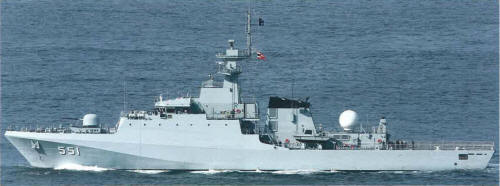

Krabi 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| กระบี่ [Krabi] | 551 | Mahidol N Yd, Baangkok | 31.8.2010 | 29.11.2011 | 26.8.2013 | in service (2019) | |
| ประจวบคีรีขันธ์ [Prachuap Khiri Khan] (ex-ตรัง [Trang]) | 552 | Sattahip N Yd | 31.6.2017 | 2019 | 2020 | building (2019) | |
| iii | 553 | planned (2019) | |||||
| iv | 554 | planned (2019) | |||||
| v | 555 | planned (2019) |
|
Displacement standard, t |
2000 |
|
Displacement full, t |
2450 |
|
Length, m |
83.0 pp 90.5 oa |
|
Breadth, m |
13.5 |
|
Draught, m |
3.50 |
|
No of shafts |
2 |
|
Machinery |
2 MAN 16RK280 diesels |
|
Power, h. p. |
9800 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3500(15) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 30/80 DS-30M, 2 x 1 - 12.7/90, helicopter deck |
|
Electronic equipment |
Variant, 2x Sperry, LIROD Mk 2 radars, TACTICOS CCS |
|
Complement |
39 + 50 passengers |
Project history: Slightly modified British River class, sister-ships for Vega class built by Vosper for Trinidad and Tobago, became later Brazilian. Contract for technologies transfer was signed 30.6.2009. There are plans to arm Prachuap Khiri Khan by Harpoon missiles.
Modernizations: None.
Naval service: Narathiwat was badly damaged by running a coastal rock 13.9.2010.
Krabi 2013
