Hua Hin 2005
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| หัวหิน [Hua Hin] | 541 | ASEAN Marine Services PC, Bangkok | 3.1997 | 3.3.1999 | 25.3.2000 | in service (2019) | |
| แกลง [Klaeng] | 542 | ASEAN Marine Services PC, Bangkok | 5.1997 | 19.4.1999 | 17.1.2001 | in service (2019) | |
| ศรีราชา [Si Racha] | 543 | ASEAN Marine Services PC, Bangkok | 12.1997 | 6.9.1999 | 17.1.2001 | in service (2019) |
|
Displacement standard, t |
450 |
|
Displacement full, t |
630 |
|
Length, m |
56.7 pp 62.0 oa |
|
Breadth, m |
8.90 |
|
Draught, m |
2.20 hull |
|
No of shafts |
3 |
|
Machinery |
3 Paxman 12VP185 diesels |
|
Power, h. p. |
10305 |
|
Max speed, kts |
25 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2500(15) |
|
Armament |
541, 543: 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 542: 1 x 1 - 76/50 Mk 26, 2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Sperry SM5000 APAR, Sperry RASCAR radars |
|
Complement |
45 |
Project history: Variation of Khamronsin without ASW abilities. Optronic fire control system is planed to be installed later.
Modernizations: None.
Naval service: No significant events.

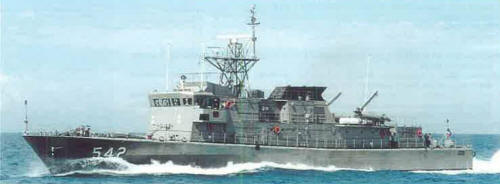

Klaeng 2001
