Chao Phraya 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| เจ้าพระยา [Chao Phraya] | 455 | Hudong, Shanghai, China | 4.1989 | 24.6.1990 | 5.4.1991 | in service (2019) | |
| บางปะกง [Bangpakong] | 456 | Hudong, Shanghai, China | 1989 | 24.7.1990 | 20.7.1991 | in service (2019) |
|
Displacement standard, t |
1675 |
|
Displacement full, t |
1925 |
|
Length, m |
103.2 |
|
Breadth, m |
10.8 |
|
Draught, m |
3.10 hull |
|
No of shafts |
2 |
|
Machinery |
4 MTU 20V1163 TB83 diesels |
|
Power, h. p. |
29440 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(15) |
|
Armament |
4 x 2 C-801 SSM (8 C-801), 2 x 2 - 100/56 type 79, 4 x 2 - 37/63 type 76, 2 x 5 type 86 ASWRL |
|
Electronic equipment |
Decca RM1290A/D, type 354, type 343, type 341, type 352C radars, SJD-5A sonar, Newton-Beta ECM suite, 2x type 945 decoy RL, ZKJ-3 CCS |
|
Complement |
168 |
Project history: Chinese project 053HT, employed primarily for antipiracy and marine police functions, used also for training. Ordered 18.7.1988.
Modernizations: 2012, both: - 4 x 2 C-801 SSM, ZKJ-3 CCS; + 4 x 2 C-802 SSM (8 C-802), RA71CA radar, COSYS CCS
Naval service: No significant events.

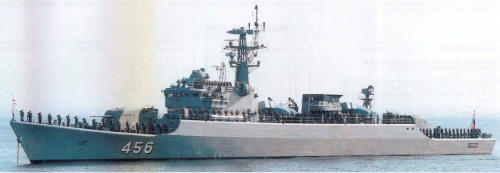

Bangpakong 2002
