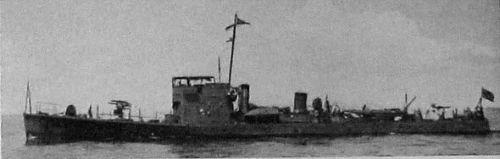

Kantang 1937
Kantang 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| คลองใหญ่ [Klongyai] | 5 | Ishikawajima, Tokyo, Japan | 1936 | 26.3.1937 | 6.1937 | stricken 1976 | |
| ตากใบ [Takbai] | 6 | Ishikawajima, Tokyo, Japan | 1936 | 26.3.1937 | 6.1937 | stricken 1973 | |
| กันตัง [Kantang] | 7 | Ishikawajima, Tokyo, Japan | 1936 | 26.3.1937 | 6.1937 | stricken 1976 | |
| สัตหีบ [Sattahip] | 8 | Bangkok DYd | 21.11.1956 | 28.10.1957 | 1958 | stricken 1981 |
|
Displacement standard, t |
110 |
|
Displacement full, t |
135 |
|
Length, m |
40.1 pp 42.0 oa |
|
Breadth, m |
4.59 |
|
Draught, m |
1.52 |
|
No of shafts |
2 |
|
Machinery |
2 sets Kampon geared steam turbines, 2 Kampon boilers |
|
Power, h. p. |
1000 |
|
Max speed, kts |
19 |
|
Fuel, t |
oil 18 |
|
Endurance, nm(kts) |
480(15) |
|
Armament |
1 x 1 - 76/40 Ansaldo 1917, 2 x 1 - 20/65 Breda 1939, 1 x 2 - 450 TT |
|
Complement |
31 |
Project history: Small low-board torpedo boats for coastal waters: some kind of returning to the ships of the end of XIX century, but on new technological level. At low price they differed by low speed and seaworthiness, therefore actually they were patrols with torpedo armament. Despite modest characteristics, ships served almost 40 years. Moreover: in 1957-1958 in Bangkok the fourth ships of given class, Sattahip, was built.
Modernizations: 1960s, all: - 1 x 1 - 20/65
Naval service: No significant events.
Takbai 1950
