| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| ต.991 [Tor 991] | 991 | Naval D Yd, Bangkok | 30.4.2007 | 7.9.2007 | in service (2019) | ||
| ต.992 [Tor 992] | 992 | Marsun, Bangkok | 7.9.2007 | 12.2007 | in service (2019) | ||
| ต.993 [Tor 993] | 993 | Marsun, Bangkok | 7.9.2007 | 12.2007 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
185 |
|
Length, m |
38.7 |
|
Breadth, m |
6.49 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V4000 M90 diesels |
|
Power, h. p. |
7400 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1500(12) |
|
Armament |
2 x 1 - 30/80 DS-30B, 2 x 1 - 12.7/90 |
|
Electronic equipment |
nav. radar, Mirador e/o director |
|
Complement |
29 |
Project history: Based on the older T93 class. Aluminium construction.
Modernizations: None.
Naval service: No significant events.

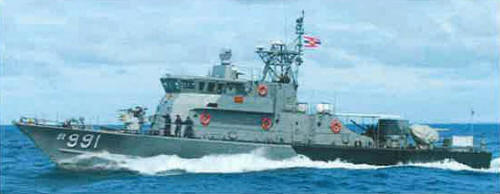

Tor 991 2007
