T81 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| ต. 13, 1970- ต. 3, 1975- ต. 81 [Tor 81] | 81 | USCG Yd, Curtis Bay, USA | 1954 | stricken 10.1987 | |||
| ต. 14, 1970- ต. 4, 1975- ต. 82 [Tor 82] | 82 | USCG Yd, Curtis Bay, USA | 1954 | stricken 10.1987 | |||
| ต. 15, 1970- ต. 5, 1975- ต. 83 [Tor 83] | 83 | USCG Yd, Curtis Bay, USA | 1954 | stricken 1982 | |||
| ต. 16, 1970- ต. 6, 1975- ต. 84 [Tor 84] | 84 | USCG Yd, Curtis Bay, USA | 1954 | stricken 10.1987 |
|
Displacement standard, t |
|
|
Displacement full, t |
105 |
|
Length, m |
29.0 |
|
Breadth, m |
5.80 |
|
Draught, m |
1.55 |
|
No of shafts |
2 |
|
Machinery |
4 Cummins VT-12-M-700 diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil 12 |
|
Endurance, nm(kts) |
2600(9) |
|
Armament |
1 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCR |
|
Electronic equipment |
SPN-21 radar, QCU sonar |
|
Complement |
15 |
Project history: New US Coast Guard cutters, similar to USCG 95ft standard.
Modernizations: None.
Naval service: No significant events.

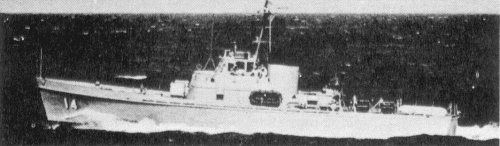

CG14
