RATCHARIT fast attack craft (missile) (1979-1980)

Ratcharit 1990

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
ราชฤทธิ์ [Ratcharit]	4, 1992- 321		Breda, Venice, Italy		30.7.1978	10.8.1979	in service (2019)
วิทยาคม [Witthayaakhom]	5, 1992- 322		Breda, Venice, Italy		2.9.1978	12.11.1979	in service (2019)
อุดมเดช [Udomdet]	6, 1992- 323		Breda, Venice, Italy		28.9.1978	21.2.1980	in service (2019)

Displacement standard, t
235

Displacement full, t

270

Length, m

47.3 pp 49.8 oa

Breadth, m

7.50

Draught, m

2.30

No of shafts

3

Machinery

3 MTU MD20V538 TB91 diesels

Power, h. p.

11500

Max speed, kts

37

Fuel, t

diesel oil

Endurance, nm(kts)

2000(15)

Armament

2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 12.7/90

Electronic equipment

Decca 1226, WM-25 radars, RDL-2 ECM suite

Complement

41

Project history: Ordered 23.7.1976. Bred'a MV250 type.

Modernizations: None.

Naval service: No significant events.

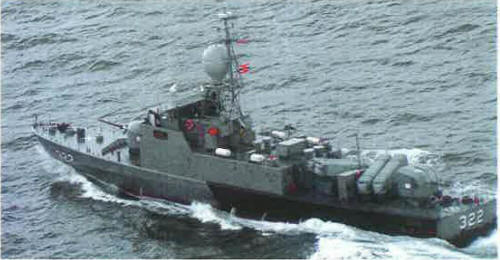

Witthayakhom 2007

� Ivan Gogin, 2019

ROYAL THAI NAVY (THAILAND)

COASTAL FORCES

RATCHARIT fast attack craft (missile) (1979-1980)

Displacement standard, t	235
Displacement full, t	270
Length, m	47.3 pp 49.8 oa
Breadth, m	7.50
Draught, m	2.30
No of shafts	3
Machinery	3 MTU MD20V538 TB91 diesels
Power, h. p.	11500
Max speed, kts	37
Fuel, t	diesel oil
Endurance, nm(kts)	2000(15)
Armament	2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 12.7/90
Electronic equipment	Decca 1226, WM-25 radars, RDL-2 ECM suite
Complement	41
