Chonburi 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| ชลบุรี [Chonburi] | 1, 1992- 331 | Breda, Venice, Italy | 15.8.1981 | 7.6.1982 | 22.2.1983 | in service (2019) | |
| สงขลา [Songhkla] | 2, 1992- 332 | Breda, Venice, Italy | 15.9.1981 | 6.9.1982 | 16.7.1983 | in service (2019) | |
| ภูเก็ต [Phuket] | 3, 1992- 333 | Breda, Venice, Italy | 15.12.1981 | 3.2.1983 | 13.1.1984 | in service (2019) |
|
Displacement standard, t |
400 |
|
Displacement full, t |
450 |
|
Length, m |
57.5 pp 60.4 oa |
|
Breadth, m |
8.80 |
|
Draught, m |
2.50 |
|
No of shafts |
3 |
|
Machinery |
3 MTU 20V538 TB92 diesels |
|
Power, h. p. |
15000 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2500(118) |
|
Armament |
2 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 Breda-Bofors Compact Twin 40, 2 x 1 - 12.7/90 |
|
Electronic equipment |
ZW-06, WM-22, LIROD 8 radars, Newton ECM suite, 4x Hycor Mk 135 decoy RL |
|
Complement |
42 |
Project history: Ordered in November 1979. Italian MV400TH type. Able to carry SSMs. Steel hull with aluminium-alloy superstructures.
Modernizations: None.
Naval service: No significant events.

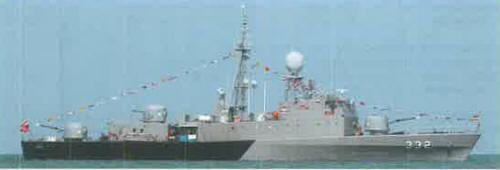

Songhkla 2009
