REPUBLIC OF CHINA NAVY (TAIWAN)
Yung Yang 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 永陽 [Yung Yang] (ex-Implicit) | 1306 | Wilmington BW, USA | 10.1952 | 1.8.1953 | 3.1954 // 1.3.1995 | in service (2019) | |
| 永慈 [Yung Tzu] (ex-Conquest) | 1307 | Martinac, Tacoma, USA | 3.1953 | 20.5.1954 | 7.1955 // 1.3.1995 | in service (2019) | |
| 永固 [Yung Ku] (ex-Gallant) | 1308 | Martinac, Tacoma, USA | 5.1953 | 4.6.1954 | 9.1955 // 1.3.1995 | stricken 6.2013 | |
| 永德 [Yung Teh] (ex-Pledge) | 1309 | Martinac, Tacoma, USA | 6.1954 | 20.7.1955 | 4.1956 // 1.3.1995 | in service (2019) |
|
Displacement standard, t |
715 |
|
Displacement full, t |
850 |
|
Length, m |
50.3 wl 52.4 oa |
|
Breadth, m |
11.0 |
|
Draught, m |
4.20 |
|
No of shafts |
2 |
|
Machinery |
1306, 1308, 1309: 4 Packard diesels 1307: 4 Waukesha diesels |
|
Power, h. p. |
2280 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil 48 |
|
Endurance, nm(kts) |
2400(12) |
|
Armament |
2 x 1 - 12.7/90, Super Sea Rover USV (can carry), A Mk 4(V), A Mk 6(B) acoustic, SLQ-37(V) magnetic and SLQ-38 mechanical minesweeping gear |
|
Electronic equipment |
SPS-53L radar, SQQ-14 sonar |
|
Complement |
70 |
Project history: Transferred in 1994. All had outer hull planking replaced prior to delivery in Taiwan; they were formally commissioned at Kaohsiung in 1995. Wooden construction; nonmagnetic, stainless-steel machinery. Hoist machinery for the SQQ-14 minehunting sonar occupies the position of the former 40-mm AA gun. Plans to update their mine-countermeasures systems have not reached fruition.
Modernizations: None.
Naval service: No significant events.

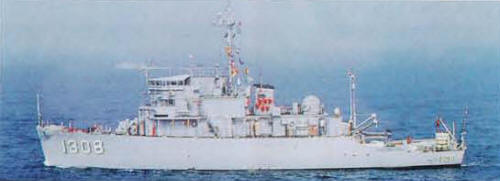

Yung Ku 2000
