REPUBLIC OF CHINA NAVY (TAIWAN)
Zhen Hai 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 鎮海 [Zhen Hai] (ex-Fort Marion) | 618, 1983- 192 | Gulf SB, Chickasaw, USA | 1944 | 22.5.1945 | 1.1946 // 15.4.1977 | stricken 6.1999 | |
| 中正 [Chung Cheng] (ex-Comstock) | 191 | Newport News, USA | 1.1945 | 28.4.1945 | 7.1945 // 9.2.1986 | stricken 7.2012 |
|
Displacement standard, t |
4790 |
|
Displacement full, t |
9375 |
|
Length, m |
138.4 wl 139.5 oa |
|
Breadth, m |
22.0 |
|
Draught, m |
5.49 |
|
No of shafts |
2 |
|
Machinery |
2 sets Skinner geared steam turbines, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
618: 9000 191: 7000 |
|
Max speed, kts |
618: 15.6 191: 15.4 |
|
Fuel, t |
oil 1758 |
| Endurance, nm(kts) | 8000(15) |
|
Armament |
2 x 4 - 40/60 Mk 2, 2 x 2 - 40/60 Mk 1, helicopter deck |
| Military load | 3 LCU(6) or 18 LCM(3) or 1450 t of cargo or 41 LVT or 47 DUKW (up to 92 LVT or 108 DUKW if additional decks are installed), up to 1200 troops |
|
Electronic equipment |
SPS-5, LN-66 radars |
|
Complement |
247 |
Project history: Former USN Cabildo class dock landing ships. Zhen Hai was acquired from US Navy. Chung Cheng was acquired in 1985 from a scrap dealer for cannibalization, but was found to be in good condition and was commissioned by ROCN.
Modernizations: 1992, both: + 1 x 4 Sea Chaparral SAM (16 MIM-72)
Naval service: No significant events.

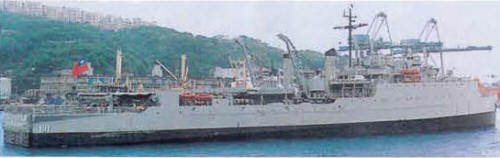

Chung Cheng 2000
