REPUBLIC OF CHINA NAVY (TAIWAN)

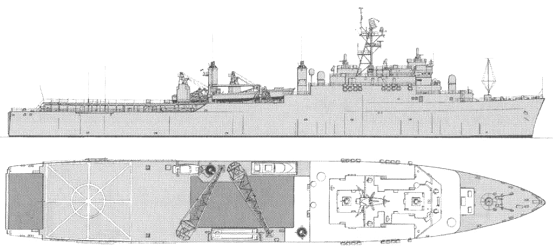

Shiu Hai 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 旭海 [Shiu Hai] (ex-Pensacola) | 193 | General Dynamics, Quincy, USA | 12.3.1969 | 11.7.1970 | 27.3.1971 // 22.9.1999 | in service (2019) |
|
Displacement standard, t |
8200 |
|
Displacement full, t |
13680 |
|
Length, m |
162.8 wl 168.7 oa |
|
Breadth, m |
25.9 |
|
Draught, m |
5.60 mean 6.10 max |
|
No of shafts |
2 |
|
Machinery |
De Laval geared steam turbines, 2 Foster Wheeler boilers |
|
Power, h. p. |
24000 |
|
Max speed, kts |
22 |
|
Fuel, t |
oil 2750 |
|
Endurance, nm(kts) |
14800(12) |
|
Armament |
2 x 1 - 25/75 Mk 38, 2 x 6 - 20/76 Mk 15 Phalanx, 8 x 1 - 12.7/90, helicopter deck |
|
Military load |
336 troops, 3 LCU or 9 LCM(8) or 18 LCM(6), 1 LCM(6), 2 LCPL, 1 LCP or 50 LVT, (1 LCPL, 1 LCVP) or 4 LCPL |
|
Electronic equipment |
SPS-64(v)9, SPS-10F, SPS-40D radars, SLQ-32(v)1 ECM suite, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy |
|
Complement |
322 |
Project history: Former USN Anchorage class landing ship-dock. Like their Thomaston class predecessors, they have a removable helicopter deck, no helicopter maintenance facilities, and limited troop space (375 men). The 131.1x15.2m well deck accommodates three LCU or nine LCM (8) or about fifty LVT. Sister-ship Fort Fisher was offered to Taiwan but was not accepted.
Modernizations: None.
Naval service: No significant events.

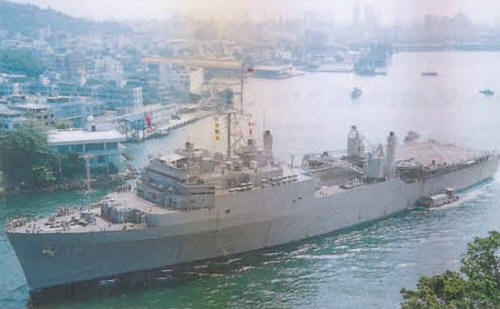

Shiu Hai 2000
