REPUBLIC OF CHINA NAVY (TAIWAN)
Zhong Zheng 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 東海 [Dong Hai] (ex-White Marsh), late 1970s- 中正 [Zhong Zheng] | 191, later- 639, later- 191 | Moore, Oakland, USA | 4.1943 | 19.7.1943 | 1.1944 // 17.11.1960 | stricken 1985 |
|
Displacement standard, t |
4490 |
|
Displacement full, t |
9375 |
|
Length, m |
138.4 wl 139.5 oa |
|
Breadth, m |
22.0 |
|
Draught, m |
4.83 |
|
No of shafts |
2 |
|
Machinery |
2 Skinner Uniflow QuiPE, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
7400 |
|
Max speed, kts |
15.4 |
|
Fuel, t |
oil 1770 |
| Endurance, nm(kts) | 7400 (15) |
|
Armament |
2 x 4 - 40/60 Mk 2, 2 x 2 - 40/60 Mk 1 |
| Military load | 3 LCT(6) or 14 LCM(3) or 1450 t of cargo or 41 LVT or 47 DUKW (up to 92 LVT or 108 DUKW if additional decks are installed), 332 marines |
|
Electronic equipment |
SPS-5, nav. radars |
|
Complement |
254 |
Project history: Former USN Ashland class dock landing ship.
Modernizations: None.
Naval service: No significant events.

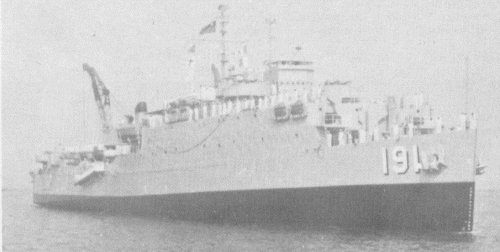

Zhong Zheng
