REPUBLIC OF CHINA NAVY (TAIWAN)
Tuo Jiang 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 沱江 [Tuo Jiang] | 618 | Lung Teh, Suao | 10/2012 | 14.3.2014 | 23.12.2014 | in service (2019) | |
| 620 | Lung Teh, Suao | 24.5.2019 | 2020 | 2021 | building (2019) |
|
Displacement standard, t |
450 |
|
Displacement full, t |
567 |
|
Length, m |
60.4 |
|
Breadth, m |
14.0 |
|
Draught, m |
2.30 |
|
No of shafts |
4 waterjets |
|
Machinery |
4 MTU 20V 4000 M93L diesels |
|
Power, h. p. |
23064 |
|
Max speed, kts |
38 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2000 |
|
Armament |
2 x 4 Hsiung Feng II SSM (8 Hsiung Feng II), 2 x 4 Hsiung Feng III SSM (8 Hsiung Feng III), 1 x 1 - 76/62 OTO-Melara Compact SR, 1 x 6 - 20/76 Mk 15 Phalanx, 2 x 1 - 12.7/90, 2 x 3 - 324 TT, flight deck for UAV |
|
Electronic equipment |
CS/SPG-6N(S), CS/SPG-6N(T), nav. radars, VDS sonar, SWR-6 ECM suite, 12x T-MASS decoy RL |
|
Complement |
41 |
Project history: Tuo Chiang became a prototype of new series wave-piercing catamaran-hulled stealth-featured multi-mission corvettes. Aluminium construction.
Modernizations: None.
Naval service: No significant events.

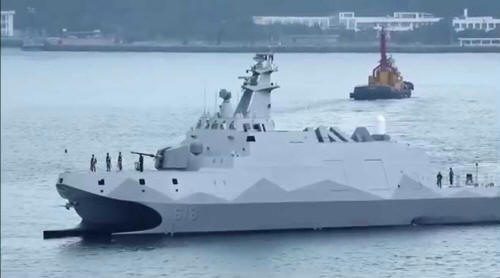

Tuo Jiang 2015
