REPUBLIC OF CHINA NAVY (TAIWAN)

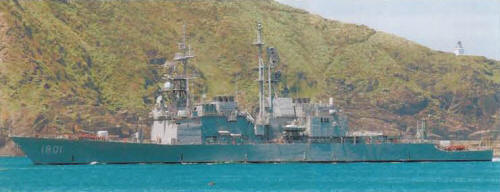

Keelung 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 基隆 [Keelung] (ex-Chiteh, ex-Scott) | 1801 | Ingalls SB, Pascagoula (Litton Industries), USA | 12.2.1979 | 1.3.1980 | 24.10.1981 // 17.1.2005 | in service (2019) | |
| 蘇澳 [Suao] (ex-Mingteh, ex-Callaghan) | 1802 | Ingalls SB, Pascagoula (Litton Industries), USA | 23.10.1978 | 1.12.1979 | 29.8.1981 // 17.12.2005 | in service (2019) | |
| 左營 [Tsoying] (ex-Tongteh, ex-Kidd) | 1803 | Ingalls SB, Pascagoula (Litton Industries), USA | 26.6.1978 | 11.8.1979 | 27.6.1981 // 25.8.2006 | in service (2019) | |
| 馬公 [Makung] (ex-Witeh, ex-Chandler) | 1805 | Ingalls SB, Pascagoula (Litton Industries), USA | 7.5.1979 | 24.5.1980 | 13.3.1982 // 25.8.2006 | in service (2019) |
|
Displacement standard, t |
7326 light |
|
Displacement full, t |
9950 |
|
Length, m |
161.2 wl 171.7 oa |
|
Breadth, m |
16.8 |
|
Draught, m |
7.01 mean 10.1 over sonar dome |
|
No of shafts |
2 |
|
Machinery |
4 General Electric LM-2500 gas turbines |
|
Power, h. p. |
86000 |
|
Max speed, kts |
31.5 |
|
Fuel, t |
gas turbine oil 1650 |
| Endurance, nm(kts) | 6000(20) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84), 2 x 2 Standard SM-2MR SAM (68 RIM-66), 2 x 1 - 127/54 Mk 45, 2 x 6 - 20/76 Mk 15 Phalanx CIWS, 4 x 1 - 12.7/90, 2 x 3 - 324 Mk 32 TT (24), 2 S-70C Seahawk helicopters |
|
Electronic equipment |
SPS-64(V)9, SPS-55, SPS-48E, SPS-49(V)5, 2x SPG-51D, SPQ-9A, SPG-60, 2x Mk 90 radars, SQS-53A sonar, SLQ-32(V)5 ECM suite, 4x Mk 137 decoy RL (Mk 36 SRBOC system), SLQ-25 Nixie torpedo decoy, SYS-2 CCS |
|
Complement |
364 |
Project history: Former USN Kidd class destroyers. Originally planned names were changed prior transfer.
Modernizations: 2009, Suao: + 2 x 4 Hsiung Feng 3 SSM (8 Hsiung Feng 3)
Naval service: No significant events.

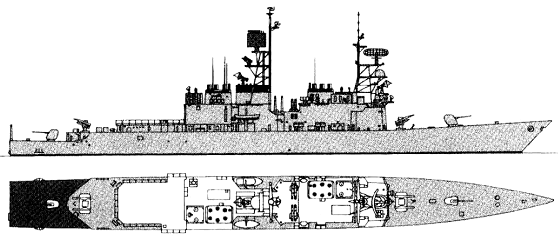

Keelung 2006
