REPUBLIC OF CHINA NAVY (TAIWAN)
Tainan 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 台南 [Tainan] | CG126 | Chung Hsin SBC, Kaohsiung | 9.5.2008 | 29.12.2009 | 26.1.2011 | in service (2019) | |
| 新北 [Hsin Bei] | CG127 | Chung Hsin SBC, Kaohsiung | 24.9.2010 | 30.4.2012 | 30.3.2013 | in service (2019) |
|
Displacement standard, t |
2000 |
|
Displacement full, t |
2460 |
|
Length, m |
87.3 pp 98.5 oa |
|
Breadth, m |
13.2 |
|
Draught, m |
3.80 |
|
No of shafts |
2 |
|
Machinery |
CG126: 2 MTU 20V1163 TB93 diesels CG127: 2 MAN 16 V 28/34D diesels |
|
Power, h. p. |
20130 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 7500(15) |
|
Armament |
CG126: 1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90, helicopter deck CG127: 2 x 1 - 20/68 T75, 2 x 1 - 12.7/90, helicopter deck |
|
Electronic equipment |
2x Furuno radars |
|
Complement |
68 |
Project history: Large patrol cutters.
Modernizations: None.
Naval service: No significant events.

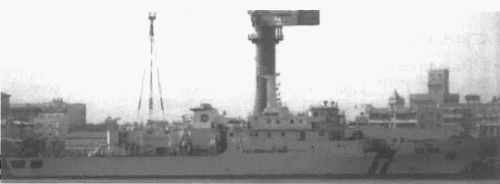

Tainan 2010
