REPUBLIC OF CHINA NAVY (TAIWAN)
Taichung 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 台中 [Taichung] | CG117 | Chung Fu SB, Kaohsiung | 1.3.2001 | in service (2019) | |||
| 基隆 [Keelung] | CG118 | Chung Fu SB, Kaohsiung | 9.4.2001 | in service (2019) | |||
| 花蓮 [Hualien] | CG119 | Chung Fu SB, Kaohsiung | 4.7.2001 | in service (2019) | |||
| 澎湖 [Penghu] | CG120 | Chung Fu SB, Kaohsiung | 28.5.2001 | in service (2019) |
|
Displacement standard, t |
500 |
|
Displacement full, t |
630 |
|
Length, m |
63.6 |
|
Breadth, m |
9.28 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V1163 TB93 diesels |
|
Power, h. p. |
15610 |
|
Max speed, kts |
31 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2400(18) |
|
Armament |
1 x 1 - 20/68 T75, 2 x 1 - 12.7/90 |
|
Electronic equipment |
2x JRC radars |
|
Complement |
46 |
Project history: Carrying two RIB inspection/rescue aft in davits. Steel and aluminum construction.
Modernizations: None.
Naval service: No significant events.

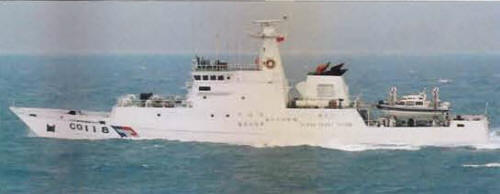

Keelung 2008
