REPUBLIC OF CHINA NAVY (TAIWAN)
| Name | No | Builder | Laid down | Launched | Comm | Fate |
| PP6001 | Lung-Teh SB, Dong Shan | 1996 | stricken 2010s | |||
| PP6002 | Lung-Teh SB, Dong Shan | 1996 | stricken 2017-18 | |||
| PP6005 | Lung-Teh SB, Dong Shan | 1997 | stricken 2010s | |||
| PP6006 | Lung-Teh SB, Dong Shan | 1997 | stricken 2010s | |||
| PP6007 | Lung-Teh SB, Dong Shan | 1997 | stricken 2010s |
|
Displacement standard, t |
91 |
|
Displacement full, t |
102 |
|
Length, m |
28.0 pp 30.5 oa |
|
Breadth, m |
6.20 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 Paxman 12VP185 diesels |
|
Power, h. p. |
6640 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 600(25) |
|
Armament |
2 x 1 - 12.7/90 |
|
Electronic equipment |
2x Racal-Decca radars |
|
Complement |
12 |
Project history: Ordered in 1995. Kevlar structure, with deep-vee hull form. Have X-band navigational radar, video plot, GPS receiver, D/F, and echo sounder. Carry a 6.5m RIB inspection craft.
Modernizations: None.
Naval service: No significant events.

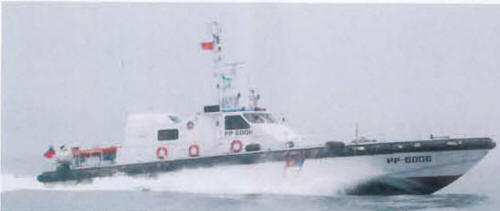

PP6006 2008
