REPUBLIC OF CHINA NAVY (TAIWAN)
|
Names |
1st series: PP3501-3503 PP3505-3513 PP3516-3523 PP3525-3532 2nd series: PP3535-3539 PP3550 PP3552, 3553 PP3555-3563 PP3565-3568 PP3572 PP3576 PP3580 |
|
Builders |
Lung-The SB, Dong-Shan: PP3501-3503, 3505-3513, 3516-3523, 3525-3532, 3535-3539, 3550, 3552, 3553, 3555-3563, 3565-3568, 3572, 3576, 3580 |
|
Completed |
1980s-1990s: PP3501-3503, 3505-3513, 3516-3523, 3525-3532 2000: PP3535-3539, 3550, 3552, 3553, 3555-3563, 3565-3568, 3572, 3576, 3580 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2000s: PP3501-3503, 3505-3513, 3523, 3526, 3528, 3529, 3531, 3532 2010s: PP3516-3522, 3525, 3527, 3530 in service (2019): PP3535-3539, 3550, 3552, 3553, 3555-3563, 3565-3568, 3572, 3576, 3580 |
|
Displacement standard, t |
33 |
|
Displacement full, t |
35 |
|
Length, m |
21.0 |
|
Breadth, m |
5.00 |
|
Draught, m |
1.50 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V183 diesels |
|
Power, h. p. |
2300 |
|
Max speed, kts |
1st series: 28 2nd series: 30 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 400(22) |
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
2x Furuno radars |
|
Complement |
8 |
Project history: GRP hull.
Modernizations: None.
Naval service: No significant events.

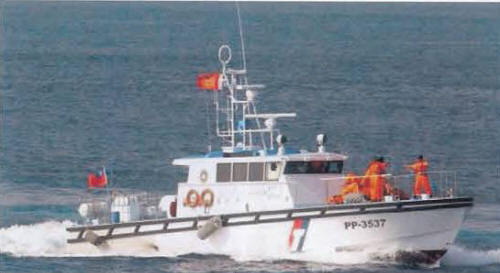

PP3537 2008
