REPUBLIC OF CHINA NAVY (TAIWAN)
|
Names |
PP3002, 3003 PP3005-3007 PP3009 PP3011, 3012 PP3015-3019 |
|
Builders |
Lung-Teh SB, Dong Shan: PP3002, 3003, 3005-3007, 3009, 3011, 3012, 3015-3019 |
|
Completed |
1995-1996: PP3002, 3003, 3005-3007, 3009, 3011, 3012, 3015-3019 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2015: PP3002, 3003, 3005, 3006, 3009, 3011, 3012, 3015-3019 2017-18: PP3007 |
|
Displacement standard, t |
29 |
|
Displacement full, t |
30 |
|
Length, m |
16.0 pp 20.0 oa |
|
Breadth, m |
4.80 |
|
Draught, m |
0.72 |
|
No of shafts |
3 |
|
Machinery |
3 MAN 2842 LE402 diesels |
|
Power, h. p. |
3300 |
|
Max speed, kts |
45 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 600(33) |
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
2x Furuno radars |
|
Complement |
8 |
Project history: Single-skin GRP deep-vee hull using PVC core with Kevlar and E-glass reinforcement; a semi-rigid inflatable fender surrounds the hull. Capable of maintaining 30 kts in 2m waves and Force 8 wind. Intended for antismuggling patrol off the northeast coast of Taiwan.
Modernizations: None.
Naval service: No significant events.

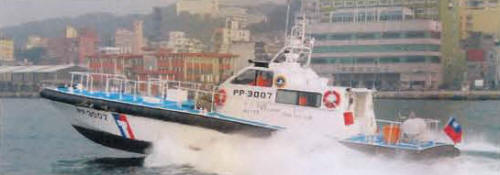

PP3007 2008
