REPUBLIC OF CHINA NAVY (TAIWAN)
|
Names |
PP2001 PP2003 PP2005-2010 PP2012, 2013 PP2015-2019 PP2021-2023 PP2025 PP2027-2033 PP2035-2038 PP2050-2053 PP2055, 2056 PP2058-2063 PP2065-2067 |
|
Builders |
Lung-Teh SB, Dong Shan: PP2001, 2003, 2005-2010, 2012, 2013, 2015-2019, 2021-2023, 2025, 2027-2033, 2035-2038, 2050-2053, 2055, 2056, 2058-2063, 2065-2067 |
|
Completed |
2001-2002: PP2001, 2003, 2005-2010, 2012, 2013, 2015-2019, 2021-2023, 2025, 2027-2033, 2035-2038, 2050-2053, 2055, 2056, 2058-2063, 2065-2067 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): PP2001, 2003, 2005-2010, 2012, 2013, 2015-2019, 2021-2023, 2025, 2027-2033, 2035-2038, 2050-2053, 2055, 2056, 2058-2063, 2065-2067 |
|
Displacement standard, t |
|
|
Displacement full, t |
21 |
|
Length, m |
14.7 |
|
Breadth, m |
3.80 |
|
Draught, m |
2.00 |
|
No of shafts |
2 |
|
Machinery |
2 MAN 2840 LE401 diesels |
|
Power, h. p. |
1640 |
|
Max speed, kts |
35 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 250(26) |
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
Furuno radar |
|
Complement |
6 |
Project history: GRP construction.
Modernizations: None.
Naval service: No significant events.

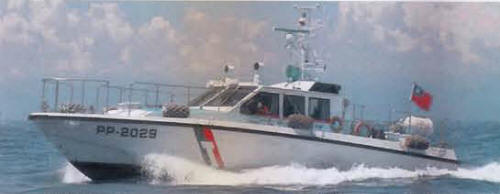

PP2029 2008
