REPUBLIC OF CHINA NAVY (TAIWAN)
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| PP10028 | Lung-Teh SB, Dong Shan | 2005 | in service (2019) | ||||
| PP10029 | Lung-Teh SB, Dong Shan | 2005 | in service (2019) | ||||
| PP10031 | Lung-Teh SB, Dong Shan | 2005 | in service (2019) | ||||
| PP10032 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10033 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10035 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10037 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10038 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10039 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10050 | Chung Fu, Kaohsiung | 2010 | in service (2019) | ||||
| PP10051 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10052 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10053 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10055 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10056 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10057 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10059 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10060 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10061 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10062 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10063 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10065 | Chung Fu, Kaohsiung | 2013-17 | in service (2019) | ||||
| PP10066 | Chung Fu, Kaohsiung | 2018 | in service (2019) | ||||
| PP10068 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10069 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10070 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10071 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10072 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10073 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10075 | Chung Fu, Kaohsiung | 2019-23 | building (2019) | ||||
| PP10077 | Chung Fu, Kaohsiung | 2019-23 | building (2019) |
|
Displacement standard, t |
95 |
|
Displacement full, t |
118 |
|
Length, m |
34.3 |
|
Breadth, m |
7.00 |
|
Draught, m |
1.50 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 16V4000 M70 diesels |
|
Power, h. p. |
6220 |
|
Max speed, kts |
34 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1400(20) |
|
Armament |
2 x 1 - 12.7/90 |
|
Electronic equipment |
2x Furuno radars |
|
Complement |
12 |
Project history: Aluminium construction.
Modernizations: None.
Naval service: No significant events.

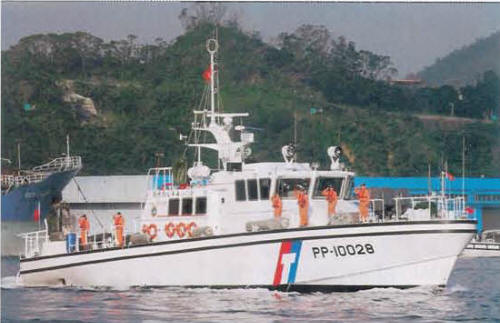

PP10028 2008
