REPUBLIC OF CHINA NAVY (TAIWAN)
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| PP10001 | Chung Hsin SBC, Kaohsiung | 1992 | stricken 2010s | ||||
| PP10002 | Chung Hsin SBC, Kaohsiung | 1992 | stricken 2010s | ||||
| PP10005 | Chung Hsin SBC, Kaohsiung | 1994 | stricken 2010s | ||||
| PP10006 | Chung Hsin SBC, Kaohsiung | 1994 | stricken 2010s | ||||
| PP10007 | Chung Hsin SBC, Kaohsiung | 1995 | stricken 2010s | ||||
| PP10008 | Chung Hsin SBC, Kaohsiung | 1995 | stricken 2010s | ||||
| PP10009 | Chung Hsin SBC, Kaohsiung | 1995 | stricken 2010s | ||||
| PP10010 | Chung Hsin SBC, Kaohsiung | 1995 | stricken 2010s | ||||
| 12.2000- 海成 [Hai Cheng] | PP10011, 12.2000- no number | Chung Hsin SBC, Kaohsiung | 2000 | Customs 12.2000, in service (2018) | |||
| 12.2000- 海恩 [Hai En] | PP10013, 12.2000- no number | Chung Hsin SBC, Kaohsiung | 2000 | Customs 12.2000, in service (2018) | |||
| 12.2000- 海清 [Hai Ching] | PP10015, 12.2000- no number | Chung Hsin SBC, Kaohsiung | 2000 | Customs 12.2000, in service (2018) | |||
| 12.2000- 海良 [Hai Liang] | PP10016, 12.2000- no number | Chung Hsin SBC, Kaohsiung | 2000 | Customs 12.2000, in service (2018) | |||
| PP10017 | Chung Hsin SBC, Kaohsiung | 2000 | stricken 2018 | ||||
| PP10018 | Chung Hsin SBC, Kaohsiung | 2000 | stricken 2018 | ||||
| PP10019 | Chung Hsin SBC, Kaohsiung | 2000 | in service (2019) | ||||
| PP10020 | Chung Hsin SBC, Kaohsiung | 2000 | in service (2019) | ||||
| PP10022 | Chung Hsin SBC, Kaohsiung | 2000 | in service (2019) | ||||
| PP10023 | Chung Hsin SBC, Kaohsiung | 2000 | in service (2019) |
|
Displacement standard, t |
103 |
|
Displacement full, t |
140 |
|
Length, m |
30.5 pp 34.3 oa |
|
Breadth, m |
6.80 |
|
Draught, m |
1.60 |
|
No of shafts |
2 |
|
Machinery |
PP10001-10010: 2 MTU396 diesels others: 2 MTU 16V4000 M70 diesels |
|
Power, h. p. |
6200 |
|
Max speed, kts |
PP10001-10010: 30 others: 34 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1400(20) |
|
Armament |
2 x 1 - 12.7/90 |
|
Electronic equipment |
2x Furuno radars |
|
Complement |
12 |
Project history: Aluminium construction.
Modernizations: None.
Naval service: In December 2000 four boats were transferred to Customs.

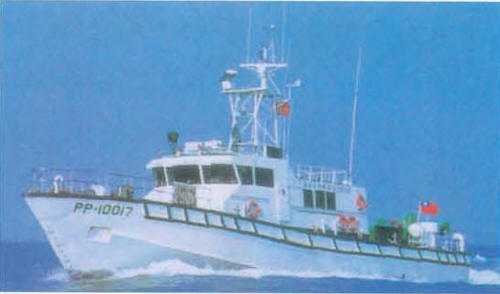

PP10017 2001

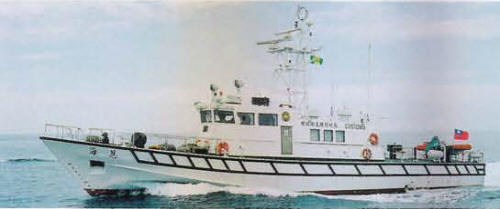

Hai Cheng 2000
