REPUBLIC OF CHINA NAVY (TAIWAN)
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| 寶星 [Pao Hsing] | 1.2000- CG107 | China SB, Keelung | 1979 | 1980 | Coast Guard 1.2000, deleted 3.2008 | ||
| 欽星 [Chin Hsing] | 1.2000- CG108 | China SB, Keelung | 26.12.1984 | 23.5.1985 | Coast Guard 1.2000, deleted 6.2010 | ||
| 德星 [Teh Hsing] | 1.2000- CG109 | China SB, Keelung | 1986 | 11/1986 | Coast Guard 1.2000, deleted 12.2014 |
|
Displacement standard, t |
550 |
|
Displacement full, t |
694 |
|
Length, m |
60.8 |
|
Breadth, m |
7.80 |
|
Draught, m |
2.10 |
|
No of shafts |
2 |
|
Machinery |
2 MAN 12V 25/30 diesels |
|
Power, h. p. |
7200 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 1 - 20/68 T75 |
|
Electronic equipment |
2x JRC radars |
|
Complement |
40 |
Project history: A flush-decked design resembling South Korean Coast Guard "Sea Whale" design, but somewhat smaller.
Modernizations: 1990s, all: - 1 x 1 - 40/60, 2 x 1 - 20/68; + 2 x 1 - 12.7/90
Naval service: No significant events.

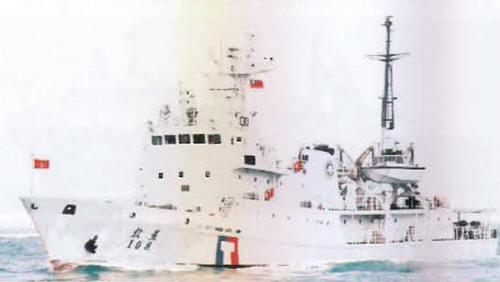

Chin Hsing 2008
